16A Weekly Dirculation Digital Programming Heated Floor Thermostat
Description
SK82 16A Weekly Dirculation Digital Programming Touch Screen Thermostat is 7 day programmable ,possible to set 6 periods each day with different tempratures ,also you can select "manual mode " or "temporary control mode "according to your individual requirements .
The SK82 series Heating room Thermostat has been developed to control electric underfloor . These units are designed for use in commercial, industrial, civil and domestic properties.
Now you don't need to choose between saving money or staying comfortable. The thermostat can help you save up energy costs every year when you use a pre-set heating program schedule. When you use our intuitive mobile app, you can adjust your room thermostat schedule around your life, so you're not needlessly heating an empty home.
Technical data
| Power Supply | AC200-240VAC 50/60HZ |
| Accuracy | ±0.5ºC |
| Probe sensor | NTC |
| Power Consumption | <0.3W |
| Load current | 3A(water heating),16A(electric heating) |
| Temperature Adjustable Range | 5°C~60°C( can adjust to 35°C~60°C) |
| Limit Temperature Range | 5°C~60°C( factory setting: 35°C) |
| Output | Switch relay |
| Insulating condition | Normal environment |
| Running program | Set per 1 week as a cycle |
| Installation | Wall mounted |
| Application | Water Floor Heating System |
| Electric Floor Heating System |
| Infrared Heater System |
| Certificate | CE,RoHS |
Selection Table
| Model | Current | Application |
| SK82.13 | 3A | Built-in& floor sensor, floor limit sensor, weekly programming |
| SK82.23 | 3A | Built-in& floor sensor, floor limit sensor, weekly programming. A potential-free output |
| SK82 | 16A | Built-in& floor sensor, floor limit sensor, weekly programming |
Programme Mode
Press key for 3 seconds to start programming when the thermostat is off.Press key to choose the starting time and set temperature of each pogram.Press"triangle" to adjust the time and temperature.

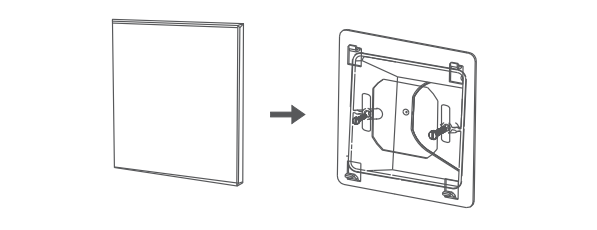

Mounting steps:
1.Mounted the backing plate in the wall sockedt by screwdriver.
2.After connect wires(see right diagram),the themostat mounte on the backing piate.
